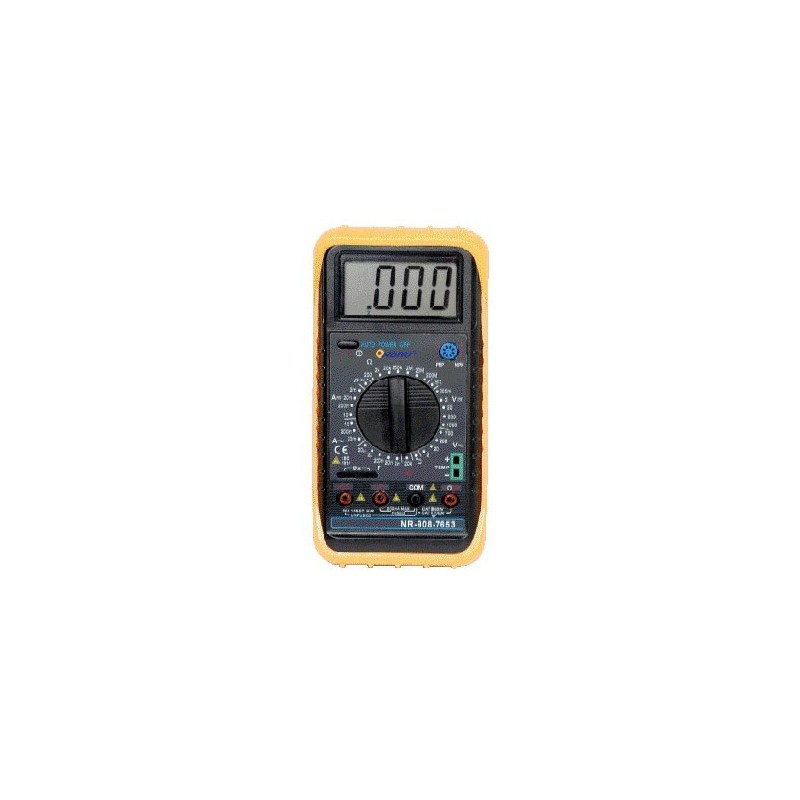

Noru Multimetro digital 908.7653 Ampliar

Noru Multimetro digital 908.7653

1 artículo disponible

Iva Incluido    22,46 EUR

Noru Multimetro digital 908.7653 <p> </p> <table style="width: 100%;" align="center"> <tbody> <tr> <td> <table style="width: 33%;" border="1"> <tbody> <tr> <td colspan="3"> <div align="center"><span><strong>VOLTAJE DC </strong></span></div> </td> </tr> <tr> <td width="25%"> <div align="center"><span>Rango </span></div> </td> <td width="54%"> <div align="center"><span>Precisión</span></div> </td> <td width="21%"> <div align="center"><span>Resolución</span></div> </td> </tr> <tr> <td><span>200mV</span></td> <td rowspan="4"> <div align="center"><span>± 0,5% rdg ± 3 dgt</span></div> </td> <td><span>0,1 m V </span></td> </tr> <tr> <td><span>2V</span></td> <td><span>1 mV</span></td> </tr> <tr> <td><span>20V</span></td> <td><span>10 mV</span></td> </tr> <tr> <td><span>200V</span></td> <td><span>0,1 V</span></td> </tr> <tr> <td><span>1000V</span></td> <td><span>  </span> <div align="center"><span>± 0,8% rdg ± 2 dgts </span></div> </td> <td><span>1 V </span></td> </tr> </tbody> </table> <br /> <span style="font-family: verdana;">Impedancia de entrada: 10M ohm en todos los rangos. <br /> </span><br /> <table style="width: 33%;" border="1"> <tbody> <tr> <td colspan="3"> <div align="center"><span><strong>VOLTAJE AC </strong></span></div> </td> </tr> <tr> <td><span>Rango</span></td> <td> <div align="center"><span>Precisión</span></div> </td> <td><span>Resolución</span></td> </tr> <tr> <td><span>2 V</span></td> <td rowspan="3"> <div align="center"><span>±0,8% rdg ± 5 dgt</span></div> </td> <td><span>1 mV</span></td> </tr> <tr> <td><span>20 V</span></td> <td><span>10 mV</span></td> </tr> <tr> <td><span>200 V</span></td> <td><span>0,1 V</span></td> </tr> <tr> <td><span>700 V</span></td> <td> <div align="center"><span>± 1,2% rdg ± 5 dgts</span></div> </td> <td><span>1 V </span></td> </tr> </tbody> </table> <br /> <span style="font-family: verdana;">Impedancia de entrada: 10M ohm en todos los rangos. <br /> Rango de frecuencia: 40 Hz a 400 Hz. <br /> </span><br /> <table style="width: 33%;" border="1"> <tbody> <tr> <td colspan="3"> <div align="center"><span><strong>CORRIENTE DC </strong></span></div> </td> </tr> <tr> <td width="25%"> <div align="center"><span>Rango </span></div> </td> <td width="54%"> <div align="center"><span>Precisión</span></div> </td> <td width="21%"> <div align="center"><span>Resolución</span></div> </td> </tr> <tr> <td><span>2mA</span></td> <td rowspan="3"> <div align="center"><span>±0,8% rdg ±3dgt</span></div> <div align="center"> </div> </td> <td><span>1µA</span></td> </tr> <tr> <td><span>20mA</span></td> <td><span>10µA</span></td> </tr> <tr> <td><span>200mA</span></td> <td><span>0,1 m A</span></td> </tr> <tr> <td><span>10A</span></td> <td><span>  </span> <div align="center"><span>± 2% rdg ± 10 dgts</span></div> </td> <td><span>10 mA</span></td> </tr> </tbody> </table> <br /> <table style="width: 33%;" border="1"> <tbody> <tr> <td colspan="3"> <div align="center"><span><strong>CORRIENTE AC </strong></span></div> </td> </tr> <tr> <td width="25%"> <div align="center"><span>Rango </span></div> </td> <td width="54%"> <div align="center"><span>Precisión</span></div> </td> <td width="21%"> <div align="center"><span>Resolución</span></div> </td> </tr> <tr> <td><span>20 mA</span></td> <td rowspan="2"> <div align="center"><span>±1% rdg ± 3 dgts </span></div> <div align="center"> </div> </td> <td><span>10µA</span></td> </tr> <tr> <td><span>200 mA</span></td> <td><span>100µA</span></td> </tr> <tr> <td><span>20 A</span></td> <td><span>  </span> <div align="center"><span>±1,8% rdg ±3 dgts </span></div> </td> <td><span>10mA</span></td> </tr> </tbody> </table> <br /> <span style="font-family: verdana;">Rango de frecuencia: 40 Hz a 400 Hz.</span><br /> <br /> <table style="width: 50%;" border="1"> <tbody> <tr> <td colspan="3"> <div align="center"><span><strong>RESISTENCIA</strong></span></div> </td> </tr> <tr> <td width="25%"> <div align="center"><span>Rango </span></div> </td> <td width="54%"> <div align="center"><span>Precisión</span></div> </td> <td width="21%"> <div align="center"><span>Resolución</span></div> </td> </tr> <tr> <td><span>200ohm</span></td> <td><span>  </span> <div align="center"><span>±1% rdg ±10 dgts </span></div> </td> <td><span>0,1 ohm </span></td> </tr> <tr> <td><span>2K ohm </span></td> <td rowspan="5"> <div align="center"><span>±1% rdg ± 1 dgt </span></div> <div align="center"> </div> </td> <td><span>1 oh </span></td> </tr> <tr> <td><span>20K ohm </span></td> <td><span>10 ohm </span></td> </tr> <tr> <td><span>200K ohm </span></td> <td><span>100 ohm </span></td> </tr> <tr> <td><span>2M ohm </span></td> <td><span>1K ohm </span></td> </tr> <tr> <td><span>20M ohm </span></td> <td><span>10K ohm </span></td> </tr> <tr> <td><span>200M ohm </span></td> <td> <div align="center"><span>±5% (rdg-10 dgts) ±20 dgt </span></div> </td> <td><span>100K ohm </span></td> </tr> </tbody> </table> <br /> <table style="width: 50%;" border="1"> <tbody> <tr> <td colspan="3"> <div align="center"><span><strong>CAPACIDAD</strong></span></div> </td> </tr> <tr> <td width="25%"> <div align="center"><span>Rango </span></div> </td> <td width="54%"> <div align="center"><span>Precisión</span></div> </td> <td width="21%"> <div align="center"><span>Resolución</span></div> </td> </tr> <tr> <td><span>2 nF </span></td> <td> <div align="center"><span> ±4% rdg ±3 dgt </span></div> <div align="center"> </div> </td> <td><span>1 PF </span></td> </tr> <tr> <td><span>20 nF </span></td> <td> <div align="center"><span>±4% rdg ±3 dgt </span></div> </td> <td><span>10 PF </span></td> </tr> <tr> <td><span>200 nF </span></td> <td> <div align="center"><span>±4% rdg ±3 dgt </span></div> </td> <td><span>0,1 n F </span></td> </tr> <tr> <td><span>2 µF</span></td> <td> <div align="center"><span>±4% rdg ±3 dgt </span></div> </td> <td><span>1 nF</span></td> </tr> <tr> <td><span>20µF</span></td> <td> <div align="center"><span>±4% rdg ±3 dgt </span></div> </td> <td><span>10 nF </span></td> </tr> </tbody> </table> <br /> <table style="width: 50%;" border="1"> <tbody> <tr> <td colspan="3" height="31"> <div align="center"><span><strong>FRECUENCIA</strong></span></div> </td> </tr> <tr> <td width="26%"> <div align="left"><span>Rango </span></div> </td> <td> <div align="center"><span>Precisión</span></div> </td> <td><span>Resolución</span></td> </tr> <tr> <td><span>20 kHZ </span></td> <td> <div align="center"><span>±1,5% rdg ±10 dgt </span></div> </td> <td><span>10 Hz </span></td> </tr> </tbody> </table> <br /> <table style="width: 50%;" border="1"> <tbody> <tr> <td colspan="4"> <div align="center"><span><strong>TEMPERATURA</strong></span></div> </td> </tr> <tr> <td> <div align="center"><span>Rango</span></div> </td> <td colspan="2"> <div align="center"><span>Precisión</span></div> </td> <td> <div align="center"><span>Resolución</span></div> </td> </tr> <tr> <td rowspan="3"> <div align="center"><span>-20 ºC a 0º C </span></div> </td> <td><span>-20ºC a 0º C </span></td> <td><span>±5% rdg ±5 dgt </span></td> <td rowspan="3"> <div align="center"><span>1º C </span></div> </td> </tr> <tr> <td><span>0º C a 400º C </span></td> <td><span>±1% rdg ±3 dgt </span></td> </tr> <tr> <td><span>400 º C a 1000º C </span></td> <td><span>±2% rdg ±3 dgt </span></td> </tr> </tbody> </table> </td> </tr> </tbody> </table>
22,46 EUR



VOLTAJE DC
Rango
Precisión
Resolución
200mV
± 0,5% rdg ± 3 dgt
0,1 m V
2V 1 mV
20V 10 mV
200V 0,1 V
1000V
± 0,8% rdg ± 2 dgts
1 V

Impedancia de entrada: 10M ohm en todos los rangos.

VOLTAJE AC
Rango
Precisión
Resolución
2 V
±0,8% rdg ± 5 dgt
1 mV
20 V 10 mV
200 V 0,1 V
700 V
± 1,2% rdg ± 5 dgts
1 V

Impedancia de entrada: 10M ohm en todos los rangos.
Rango de frecuencia: 40 Hz a 400 Hz.

CORRIENTE DC
Rango
Precisión
Resolución
2mA
±0,8% rdg ±3dgt

1µA
20mA 10µA
200mA 0,1 m A
10A
± 2% rdg ± 10 dgts
10 mA

CORRIENTE AC
Rango
Precisión
Resolución
20 mA
±1% rdg ± 3 dgts

10µA
200 mA 100µA
20 A
±1,8% rdg ±3 dgts
10mA

Rango de frecuencia: 40 Hz a 400 Hz.

RESISTENCIA
Rango
Precisión
Resolución
200ohm
±1% rdg ±10 dgts
0,1 ohm
2K ohm
±1% rdg ± 1 dgt

1 oh
20K ohm 10 ohm
200K ohm 100 ohm
2M ohm 1K ohm
20M ohm 10K ohm
200M ohm
±5% (rdg-10 dgts) ±20 dgt
100K ohm

CAPACIDAD
Rango
Precisión
Resolución
2 nF
±4% rdg ±3 dgt

1 PF
20 nF
±4% rdg ±3 dgt
10 PF
200 nF
±4% rdg ±3 dgt
0,1 n F
2 µF
±4% rdg ±3 dgt
1 nF
20µF
±4% rdg ±3 dgt
10 nF

FRECUENCIA
Rango
Precisión
Resolución
20 kHZ
±1,5% rdg ±10 dgt
10 Hz

TEMPERATURA
Rango
Precisión
Resolución
-20 ºC a 0º C
-20ºC a 0º C ±5% rdg ±5 dgt
1º C
0º C a 400º C ±1% rdg ±3 dgt
400 º C a 1000º C ±2% rdg ±3 dgt
